| Shadow board - All tools needed to perform drilling setup on a Burgmaster Drill. Tools are outlined to indicate proper return position and when one is missing. |
| Photo of dollie with 8” phenolic wheels and locking brake to easily move standard wooden pallets and pallet boxes within a work area by the operator. Load capacity is 3600 lbs. but Safety work rules will mandate allowable max. weight to be pushed by employees. |
|
magnetic chip conveyor (upper arrow) and sheet metal splash guards applied around top of open coolant tank. |
| Photo showing weld fixture storage rack with “highest running jobs” stored at front end of rack to be easily accessible to welders. |
| Photo shows example of wire racking for point of use storage at an assembly operation. Also it would be useful to store light weight components at a weld station. The containers are small enough that a two container kan-ban system can be used for replenishment method. |
| Shadow board - All tools needed to perform drilling setup on a Deka Drill. Tools are outlined to indicate proper return position and when one is missing. |
| Shadow Boards - All tools needed to perform drilling setup on a Gun Drill. Tools are outlined to indicate proper return position and when one is missing. |
| Vertical Storage Systems can be used to centralize components around a work center. They can significantly increase the amount of available floor space. |

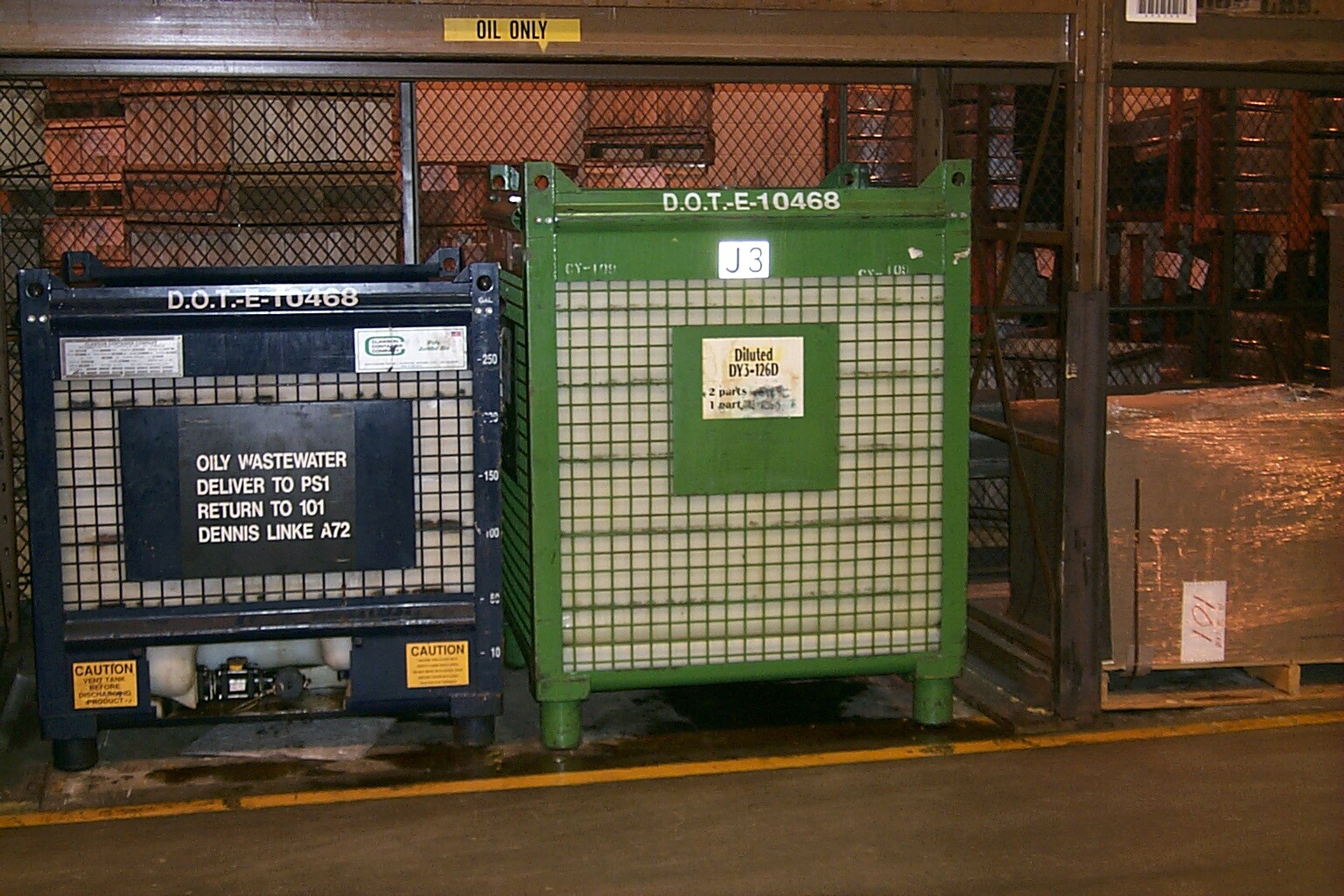

| 330 gallon liqua bins can be used to eliminate several 55 gallon drums for die lubricants, oils, washer chemicals, and floor cleaners. |
| Industrial label makers can be used to specify storage locations. |
